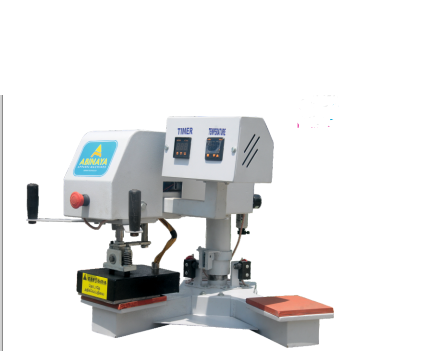

AUTOMATIC DOUBLE BED HEAT TRANSFER FUSING PRESS
A66, A88, A1010, A1515

  • Fully automatic heat transfer press
  • Usual machine for transfer printing of labels, swatches on inner wears
  • Double pallet fast production system
  • Electronic SSR circuit noise free & zero maintenance
  • Automatic release of heater bed in case power failure
  • Best adaptability for all kin of transfers
  • All safety features
A 6"X6" DOUBLE BED
MODELS SIZE POWER TEMP WEIGHT
A 2/4 2”/4” 600W/230W 230 C 45Kgs
A 4/4 4”/4” 600W/230W 230 C 50Kgs
A 6/6 6”/6” 700W/230W 230 C 60Kgs
A 8/8 8”/8” 900W/230W 230 C 65Kgs
A 15/15 15”/15” 2000W/230W 230 C 75Kgs

AUTOMATIC DOUBLE BED HEAT TRANSFER FUSING PRESS
A44, A54, A64 - Manual

  • Manually operated heat transfer press
  • Ideal for plastisol fusing, curing & heat transfer printing
  • Easy operation through clamp system
  • Electronic contractor switching for noise free and zero maintenance
  • Anti static TEFLON is used on the upper bed to prevent corrosion
  • Minimum moving parts results in zero maintenance
A 6"X6" MANUAL
MODELS SIZE POWER TEMP WEIGHT
A 44 15/15” 1500W/230W 230 C 85Kgs
A 54 15/20” 3600W/230W 230 C 95Kgs
A 64 17/22” 3600W/230W 230 C 110Kgs
Double Bed Transfer Fusing apparel machine abinayaapparelmachines.com
Double Bed Transfer Fusing apparel machine abinayaapparelmachines.com

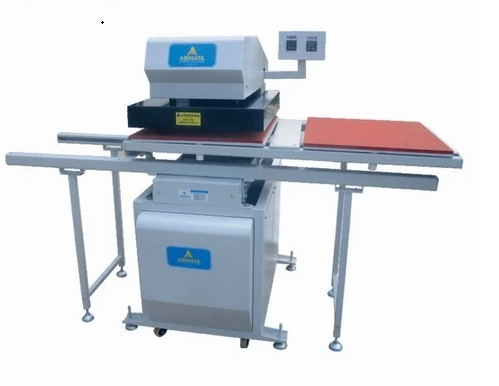

AUTOMATIC DOUBLE BED HEAT TRANSFER FUSING PRESS
A1520,A2217,A2224

  • Fully automatic heat transfer press
  • Usual machine for transfer printing of labels, swatches on inner wears
  • Double pallet fast production system
  • Electronic SSR circuit noise free & zero maintenance
  • Automatic release of heater bed in case power failure
  • Best adaptability for all kin of transfers
  • All safety features

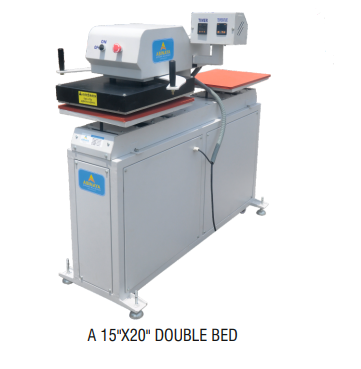

A 15"X20" DOUBLE BED
MODELS SIZE POWER TEMP WEIGHT
A 1520 20”/15” 3700W/230W 230 C 160Kgs
A 2217 22”/17” 4200W/230W 230 C 180Kgs
A 2224 24”/22” 4800W/230W 230 C 125Kgs

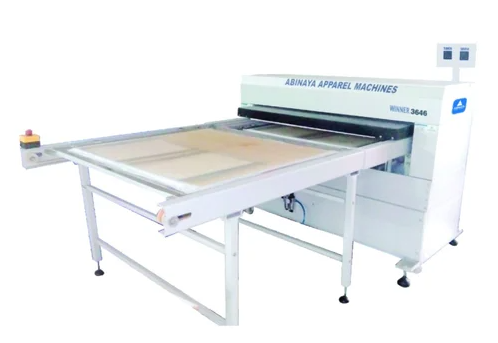

AUTOMATIC & MANUAL SUBLIMATION TRANSFER MACHINE WITH DOUBLE TRAY

  • Fully automatic & manual heat transfer press for extra large fabrics
  • All type of fusing sublimation and foil transfer for good result
  • Easy operating manul and automatic available
  • Electronic heater SSR for noise free and zero maintenance
  • Double tray movement for fast production
  • High quality motor and variable speed adjustment
MODELS SIZE KW POWER WEIGHT
Winner 2248 22”/48” 9 KW 440VAC 760kgs
Winner 2260 22”/60” 12 KW 440VAC 1100kgs
Winner 2224 22”/24” 6 KW 440VAC 550kgs
Winner 3642 36”/42” 9 KW 440VAC 1200kgs
Winner 3646 36”/46” 10KW 440VAC 1400kgs
Winner 3040 30”/40” 9 KW 440VAC 1100kgs
Winner 6040 60”/40” 12 KW 440VAC 1300kgs
Manual Sublimation Transfer Machine apparel machine abinayaapparelmachines.com
automatic single bed heat transfer fusing press apparel machine abinayaapparelmachines.com

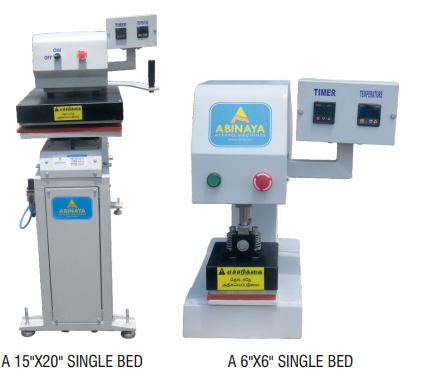

AUTOMATIC SINGLE BED HEAT TRANSFER FUSING PRESS
A44, A54, A64

  • Fully automatic heat transfer press
  • Usual machine for plastisol fusing, curing and transfer printing
  • User friendly through pneumatic system
  • Electronic SSR circuit noise free & zero maintenance
  • Automatic release of heater bed in case power failure
  • Best adaptability for all kin of transfers
  • Zero maintenance
A 15"X20" SINGLE BED
MODELS SIZE POWER TEMP WEIGHT
A 44 15”/15” 1500W/230W 230 C 70Kgs
A 54 20”/15” 3600W/230W 230 C 85Kgs
A 64 17”/22” 3600W/230W 230 C 110Kgs
A 2224 24”/22” 4200W/230W 230 C 150Kgs

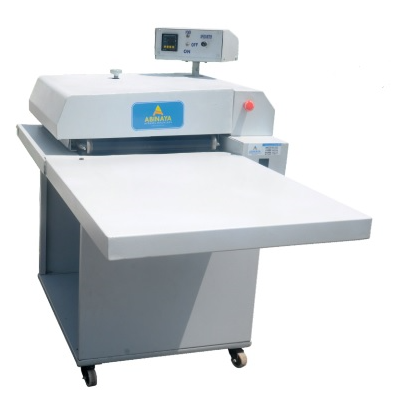

STRIGHT LINEAR FUSING

  • l Accurate Fusing machine for Shirts, Collars, Cuffs, front placket, waist band & pocket flap for trousers, all type of leather products, Knit wear collars, front placket, embroidery parts etc..
  • Large and small conveyor fusing fabric
  • Foil printing & fusing
  • Easy loading and existing system
  • Long life belt and all parts of machine
  • Good tracking system
  • Easy to install in small places
  • Soft spring mounted tail roller for minimum belt tension
  • Pneumatic presser 5kg in out of the world fusing
  • Good scrapper for easy fix and removal
  • Sizes available as per customer requirement
MODELS SIZE KW POWER WEIGHT TEMPERATURE
A-450 450mm 4kw 230VAC 150kgs 225 C Max
A-600 600mm 9kw 440VAC 825kgs 225 C Max
A-1000 1000mm 24kw 440VAC 1300kgs 225 C Max
A-1500 1500mm 30k 440VAC 1650kgs 225 C Max
Straight Linear Fusing apparel machine abinayaapparelmachines.com
High Precision Printing apparel machine abinayaapparelmachines.com

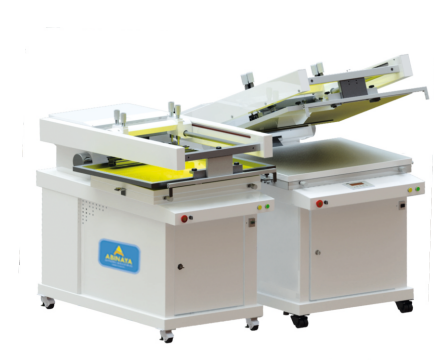

HIGH PRECISION SCREEN PRINTING MACHINE

  • PLC controlled operation
  • Two variable speed controller
  • Text panel input
  • X-Y bed adjustment up to +/-5mm
  • Max substrate thickness up to 10mm
  • accurate pressure adjustment
  • Multi stroke input 0 to 9
  • Peel off timer
  • Separate operator counting
  • Owner counter with password for total sheet counting
  • Vacuum on/off mode for gumming
  • Separate speed control for flood bar and squeezer
  • Selectable operating mode for squeezing & coating, coating & squeezing
  • Separate motor for squeezing & screen up down
  • F class insulation motor
  • Vacuum delay timer for variable sheet thickness
  • Though beam sensor for safety purpose
Maximum Print Area Bed Size Printable object thickness Screen frame size Cycle speed Power consumption
15”x20”, 18”x24” 20”x28”, 24”X32” 5mm Min 22”x22” Max 28”x32” Min 22”x22” Max 32”x35” 1000/Hour Single phase

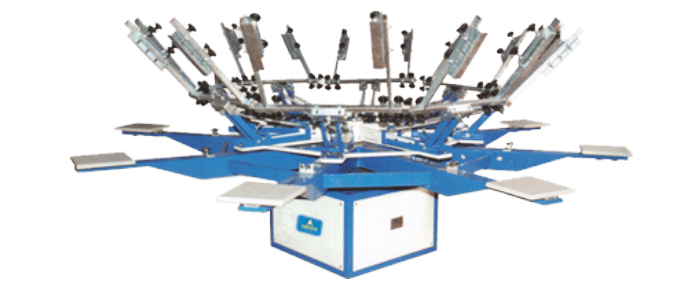

MANUAL T SHIRT SCREEN PRINTING MACHINE

  • Manually operating easy movement CHEST PRINTING MACHINE
  • Screen fixing is very easy
  • Colour range 4 to 12
  • High quality spring movement
  • 100% registration on all pallets
  • Free moving baring system
NO. OF COLOURS PRINT AREA MACHINE DIA MACHINE HEIGHT MACHINE WEIGHT
6 Colours 50 x 60 cm 3000mm 1100mm 400kgs
8 Colours 50 x 60 cm 3500mm 1100mm 600kgs
10 Colours 50 x 60 cm 3850mm 1100mm 750kgs
12 Colours 50 x 60 cm 4250mm 1100mm 850kgs
Manual T Shirt Screen Printing apparel machine abinayaapparelmachines.com
Rotary Sublimation apparel machine abinayaapparelmachines.com

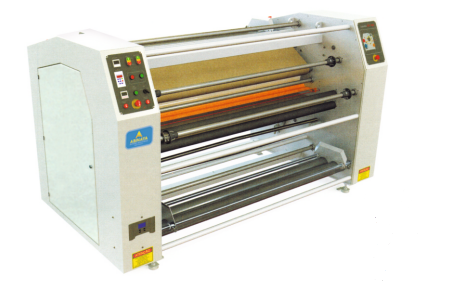

ROTARY SUBLIMATION PRESS

  • Drum type continuous unlimited sublimation press
  • Easy to operate roll fabric and cut pieces
  • After printing fabric and paper roll system
  • Electronic contractor switching for noise free and zero maintenance
  • Variable speed adjustment as per fabrics
  • Noise free, when the machine is running condition
  • As per customer requirement sizes available
  • High quality printing result
MODELS ROLL to ROLL KW Speed Power Power
A-78 78” 37KW 3.2 mtrs/ M 440VAC 4800 Kgs
A-72 72” 32 KW 2.8 mtrs/ M 440VAC 3800 kgs
A-48 48” 18 KW 2.8 mtrs/ M 440VAC 2800 kgs

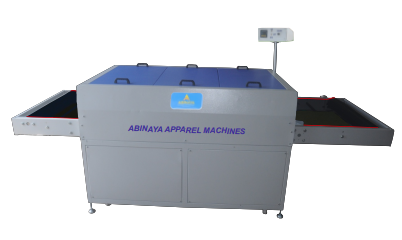

CURING MACHINE

  • IR technology consumes extremely less electricity
  • Best IR heaters and perfect control on temperature and evenness of heat
  • IR curing requirement of water base plastisol pigment an all types of inks
  • Without belt tracking conveyor
  • Electrical circuit SSR and digital PID and zero maintenance
  • Nonstick and heat resistant teflon belt conveyor
  • Easy assembled and dissemble system
Models IR 600 IR 900 IR 90 IR 120 IR 160
Belt width 24” 36” 48” 48” 62”
Temperature 230 C Max 230 C Max 230 C Max 230 C Max 230 C Max
KW 6 KW 12 KW 24 KW 24 KW 30 KW
Power 440 AC 440 AC 440 AC 440 AC 440 AC
Weight 300Kgs 500Kgs 1000Kgs 1200Kgs 1350Kgs
Curing Machine apparel machine abinayaapparelmachines.com
Spot Dryer apparel machine abinayaapparelmachines.com

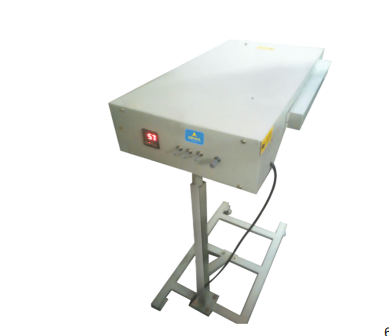

SPOT DRYER

  • Infrared tubes for fast heat up and cool times
  • Easy movable from one to another place
  • Pallet size adjustable heating chamber
  • Easy high adjustable
  • Very less power consumption
  • Automatic On/Off system
  • Electronic SSR circuit noise free and zero maintenance
Model Medium Wave Short Wave Short Wave
Size 17/22 17/22 24/24
Heater 3KW 6 KW 9 KW
Power 230AC 440 AC 440 AC
Weight 26 Kgs 26 Kgs 38 Kgs

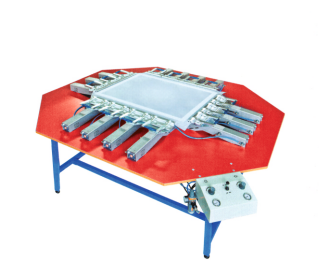

SCREEN STRETCHER

  • Easy holding clamp system
  • Adjustable knob for screen height adjustment
  • Perfect pressure control from air regulator
  • Long service life
  • As per customer requirement sizes available
Models Size Weight
ASC-250 250mm 250kgs
Screen Stretcher apparel machine abinayaapparelmachines.com
Dryer Rack apparel machine abinayaapparelmachines.com

DRYER RACK

  • Easy to handle

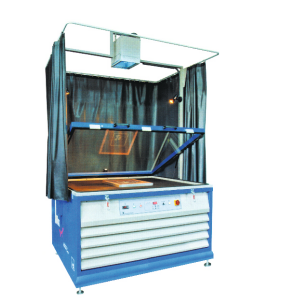

EXPOSING CABINET

  • High quality metal halide screen exposing machine
  • Electronic transistor circuit noise free and zero maintenance
  • Efficient digital timer
  • Oil less high quality vacuum pump
  • Automatic electrical control for all operations
Models Frame size Weight Power KW
A4252 40-50” 250kgs 440AC 3KW
exposing cabinet apparel machine abinayaapparelmachines.com
Air Compressor abinayaapparelmachines.com

INDUSTRIAL AIR COMPRESSOR

  • Very easy screen washing
  • Ultimate air & water pump system
  • Screen inside lighting system
  • Easy transportation & Installation
  • Variant sizes available
